As industries such as optoelectronics, sensing, AR displays, and automotive imaging accelerate, the spectral accuracy of optical filters has become a key differentiator.
Traditional thermal evaporation and ion-assisted processes, though well-established, are increasingly constrained by limitations in film density, wavelength drift, and thickness uniformity.
Electron-beam evaporation (EBE), with its high energy density, high-purity deposition, and highly compact film structures, is emerging as a precision coating tool for modern optical manufacturing.
EBE optical coatings enable:
From optical filters and interferometric mirrors to beamsplitters, AR coatings, and laser reflectors, EBE technology is steadily replacing legacy approaches—becoming the new mainstream in optical thin-film fabrication.
The quality of an optical coating directly determines a filter’s lifespan and spectral accuracy.
In electron-beam evaporation, high-energy electrons locally vaporize target materials under vacuum, enabling them to condense on the optical substrate to form dense and highly uniform thin films.
Industry-validated data shows that E-beam coatings deliver:
This means electron-beam evaporation is not only a performance upgrade, but also a pathway toward greener, more efficient manufacturing.
Through intelligent e-beam source control and precision thickness-monitoring systems, HCVAC enables customers to achieve ultra-accurate spectral performance while building a low-energy, high-efficiency production platform.
Electron-beam evaporation supports a wide range of optical film systems and advanced applications across the visible to infrared spectrum:
Application Area | Typical Coating Systems | Technical Features |
Camera lens modules | IR-cut filters, AR anti-reflection coatings | Higher transmittance and color fidelity; reduced stray light |
Display panels / automotive displays | Brightness-enhancement films, polarizing films, anti-reflection coatings | Improved display contrast and anti-reflective performance |
AR/VR optical systems | Waveguide coatings, reflective coatings, polarization-control films | Supports virtual–real fusion imaging; enhances immersion |
Microscopes and telescopic lenses | Interference filters, reflective mirrors | Enhanced spectral selectivity and image clarity |
Surveillance and security cameras | Infrared-cut filters (IR-cut) | Blocks infrared during daytime, supports day–night imaging |
Infrared night-vision & thermal imaging systems | Infrared bandpass filters, anti-reflection coatings | Higher signal-to-noise ratio; reduced environmental interference |
Optical communication & sensors | Bandpass filters, beam-splitter coatings | Achieves high-precision wavelength multiplexing and spectral selection |
Pain Point Type | Issue Description |
Film density | Thermal evaporation tends to form porous structures, resulting in poor moisture and heat resistance |
Spectral stability | Difficult to control multilayer interference thickness; significant wavelength drift |
Uniformity | Challenging to achieve consistent coating thickness on large-diameter optical filters |
Production efficiency | Process instability leads to limited throughput and yield |
These limitations are especially critical in high-end optics manufacturing—driving the industry’s accelerated shift toward electron-beam evaporation technology.
With high-energy electron-beam sources and precision control systems, the optical film performance is significantly enhanced across multiple dimensions:

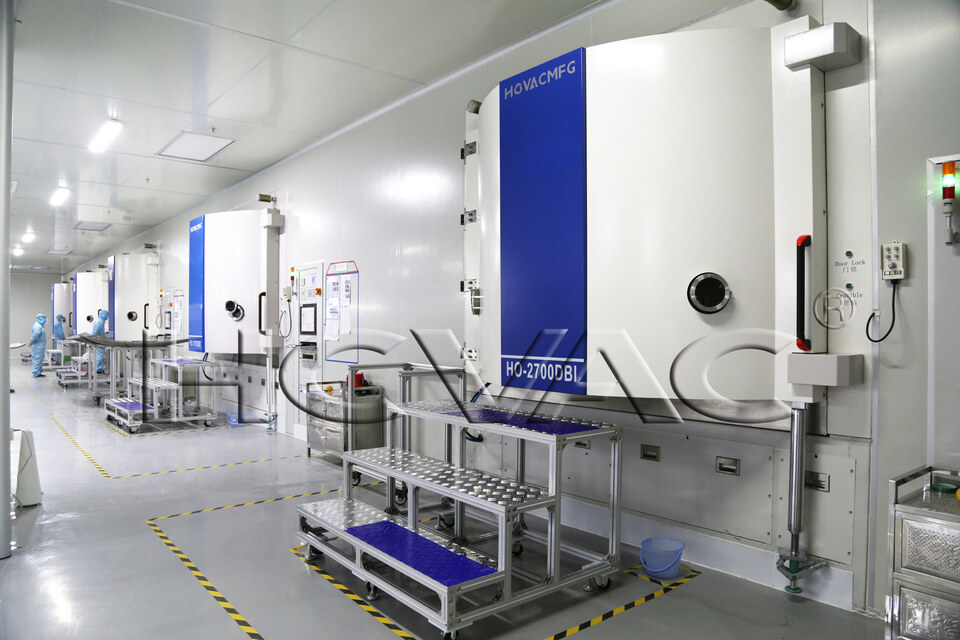

Leveraging years of expertise in vacuum coating technologies, HCVAC offers intelligent electron-beam optical coating systems tailored for precision manufacturing of filters, lenses, and laser-optical components.
Key Advantages
Typical Applications
Looking ahead, electron-beam optical coating will continue evolving toward higher precision, smarter automation, and greener manufacturing.
HCVAC is advancing the domestic development and industrialization of intelligent EBE coating equipment, providing robust technical support for China’s next-generation optical manufacturing.
As a leading manufacturer of vacuum coating equipment in China, Guangdong Huicheng Vacuum Technology Co., Ltd. continues to drive optical-manufacturing innovation through advanced engineering and process development.
Our electron-beam optical coating systems are widely applied by:
With reliable equipment performance, comprehensive process support, and flexible customization capabilities, HCVAC is partnering with clients to advance the global deployment of high-end, domestically manufactured optical coating solutions.
